Products

Products

Flexible Shaft Grinders

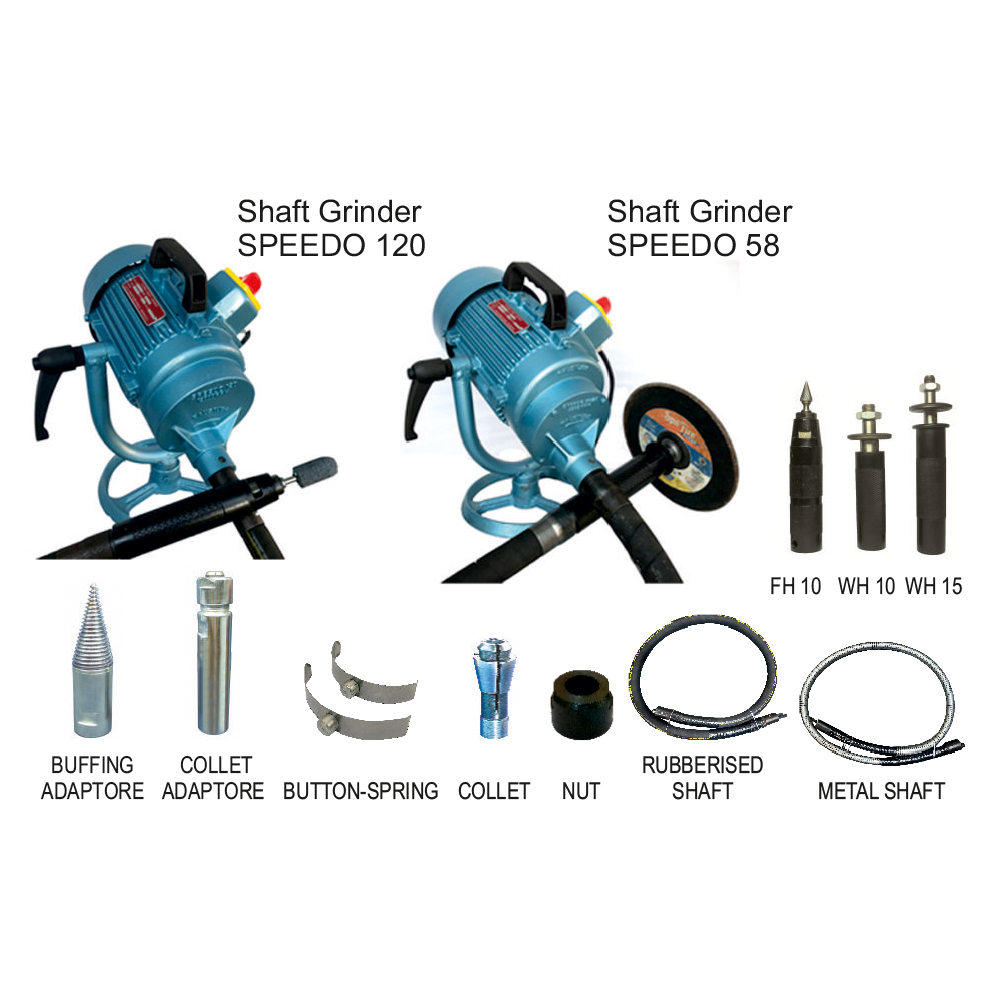

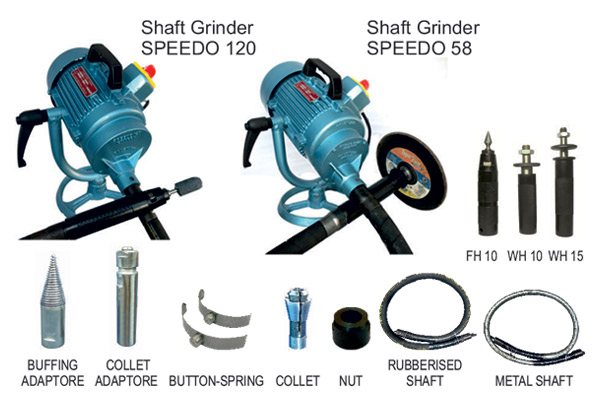

SPEEDO Flexible Shaft Grinder

SPEEDO Flexible Shaft Grinder

SPEEDO Flexible Shaft Grinder

Model Horse Power No Load Speed Application Voltage Phase
SPEEDO 80 1 HP 8000 Die Grinding Deburring 440 V III Ph
SPEEDO 120 1 HP 12000
SPEEDO 58 1.5 HP 5800 Fettling, Buffing
SPEEDO
58-2.5		 2.5 HP 5800 Heavy Buffing
Single Phase also available.

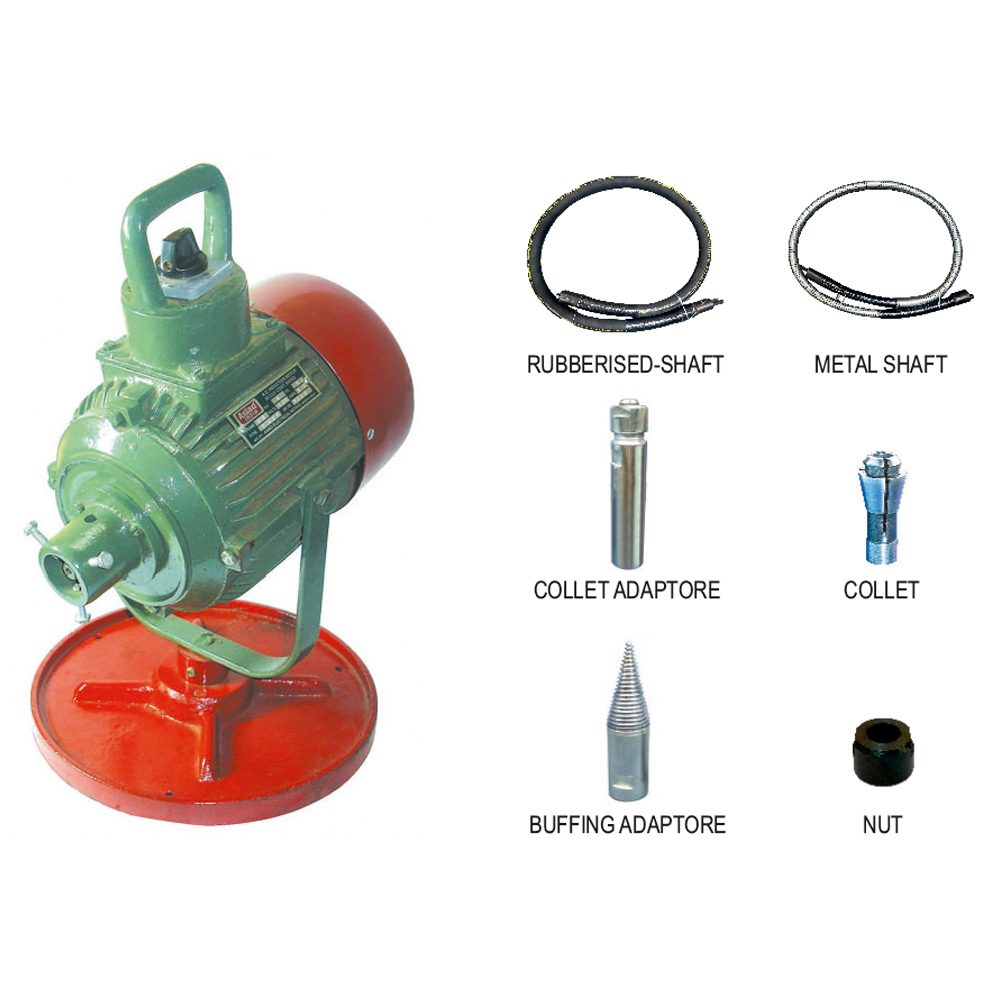

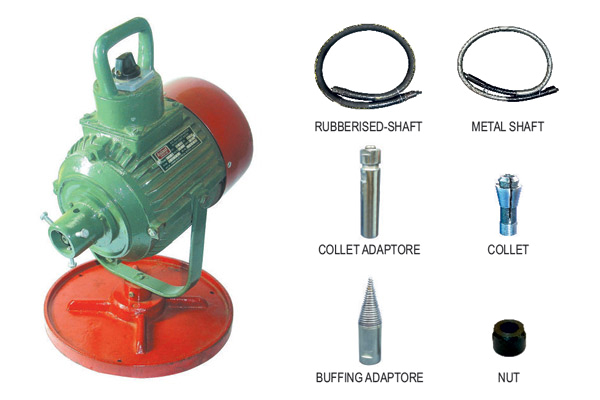

Continental Flexible Shaft Grinder

CONTINENTAL Flexible Shaft Grinder

Continental Flexible Shaft Grinder

Model Horse Power No Load Speed Application Voltage Phase
C 11 1 HP 2880 Grinding 220V I Ph
C 13 1 HP 440V III Ph
C 21 2 HP Buffing 220V I Ph
C 23 2 HP 440V III Ph
C 33 3 HP Heavy Buffing 440V III Ph

Industrial Machine Lamps

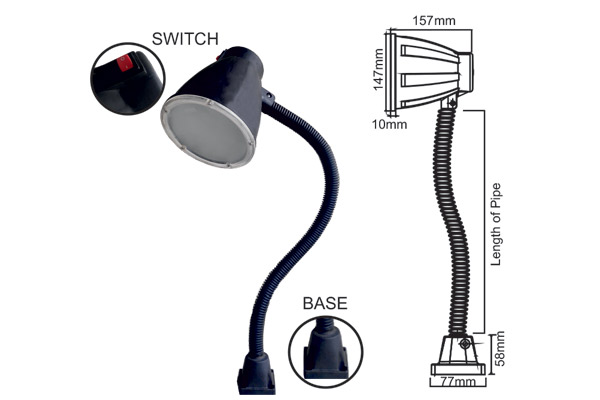

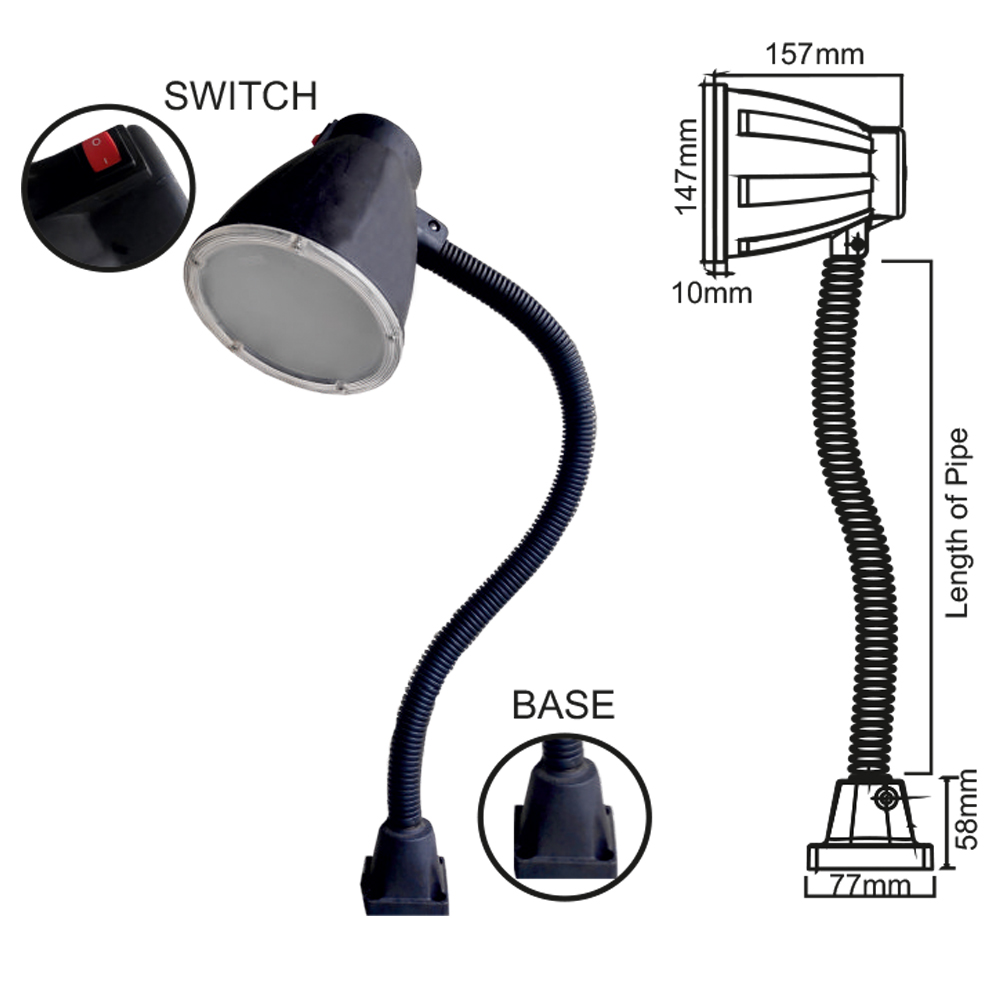

Machine Lamp Flexible Series

Machine Lamp Flexible Series

Machine Lamp Flexible Series

Head & Base: Nylon Polyamide
Switch: Waterproof, Tested for 50,000 cycles
Installation: Fixed by screw Luminious: 825 Lumen
Wire: 2 core x 2 Mtr Long cable Voltage: 230V AC Supply
Efficiency: 9.5 lm/W Power: 9 W
Light Colour: Cool White Holder: B22 Type

Model No. CL 6 CL 18 CL 24
Pipe Length 6" 18" 24"

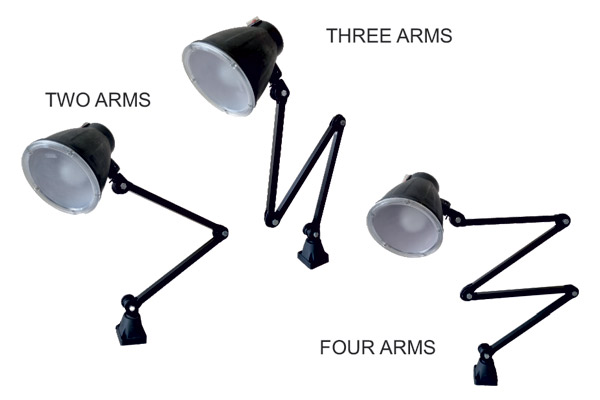

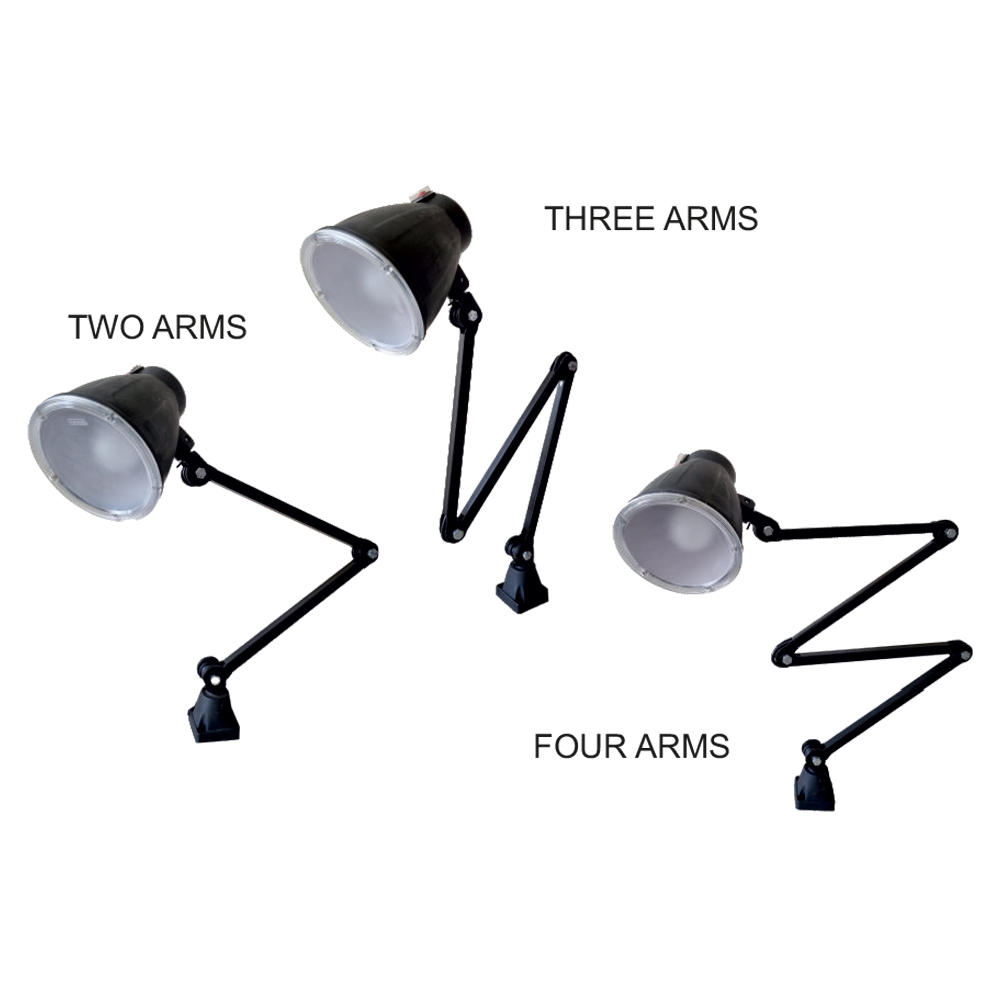

Machine Lamp Arm Type

Industrial Machine Lamp

Machine Lamp Arm Type

Head & Base: Nylon Polyamide
Switch: Waterproof, Tested for 50,000 cycles
Installation: Fixed by screw Luminious: 825 Lumen
Wire: 2 core x 1 Mtr Long cable Voltage: 230V AC Supply
Efficiency: 9.5 lm/W Power: 9 W
Light Colour: Cool White Holder: B22 Type

Model No. CL-2A CL-3A CL-4A
Total Length 24" Long 36" Long 48" Long

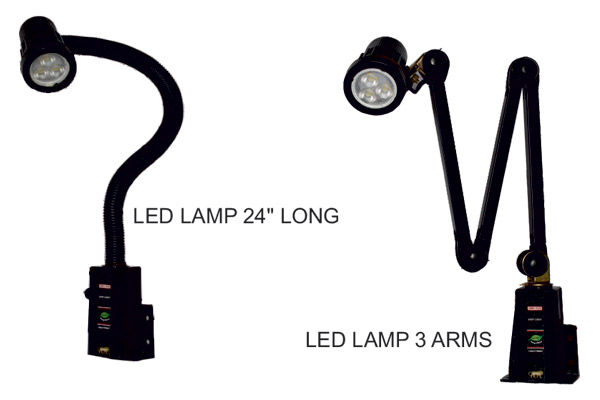

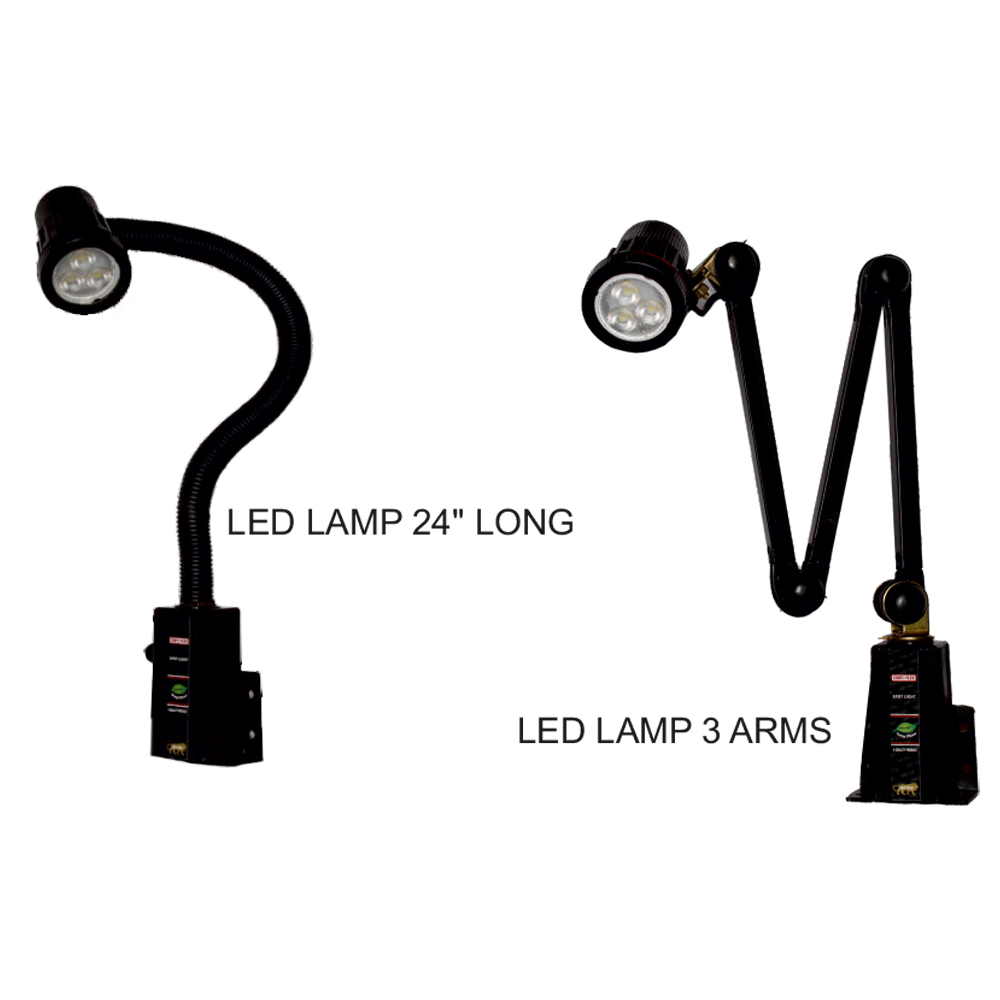

Machine Lamp Spotlight LED

Machine Lamp Spotlight LED

Machine Lamp Spotlight LED

Switch: Waterproof Switch, 50000 times ON /OFF test done
Head and Base: Nylon Polymide Power: 6.5W
Wire: 3 Core x 2 Mtr Long Cable LED: Osram working Life 30000 hours
LED Colour Temparature: 6500K Luminiuos: 600 Lumen
Light Colour: White Protection: Splash resistant 3mm Glass

Model No. 62423 62424 6323 6324
Supply Voltage 230V AC 24V DC 230V AC 24V DC
Arms 24" Flexible 3 Arms
18” Long also available, Price on request.

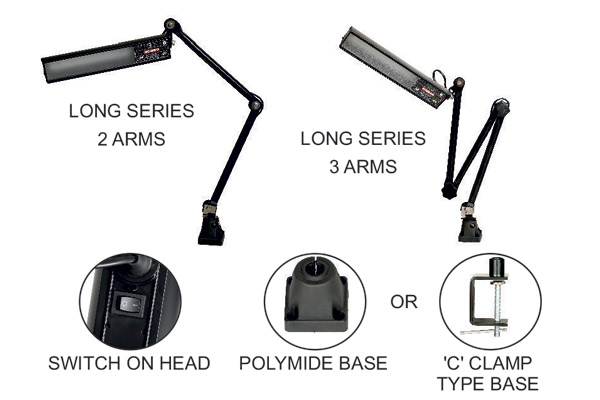

Machine Lamp Long Series

Machine Lamp Long Series

Machine Lamp Long Series

Switch: 50000 times ON /OFF test done
Head: Aluminium Base: Nylon Polymide
Wire: 2 Core x 2 Mtr Long Cable Voltage: 230V AC Supply / 24V DC Supply
Luminious: 600 Lumen Power: 9 W
Light Colour: White Bulb: LED

Model No. 9223 9224 9323 9324
Supply Voltage 230V AC 24V DC 230V AC 24V DC
Arms 2 Arms 3 Arms

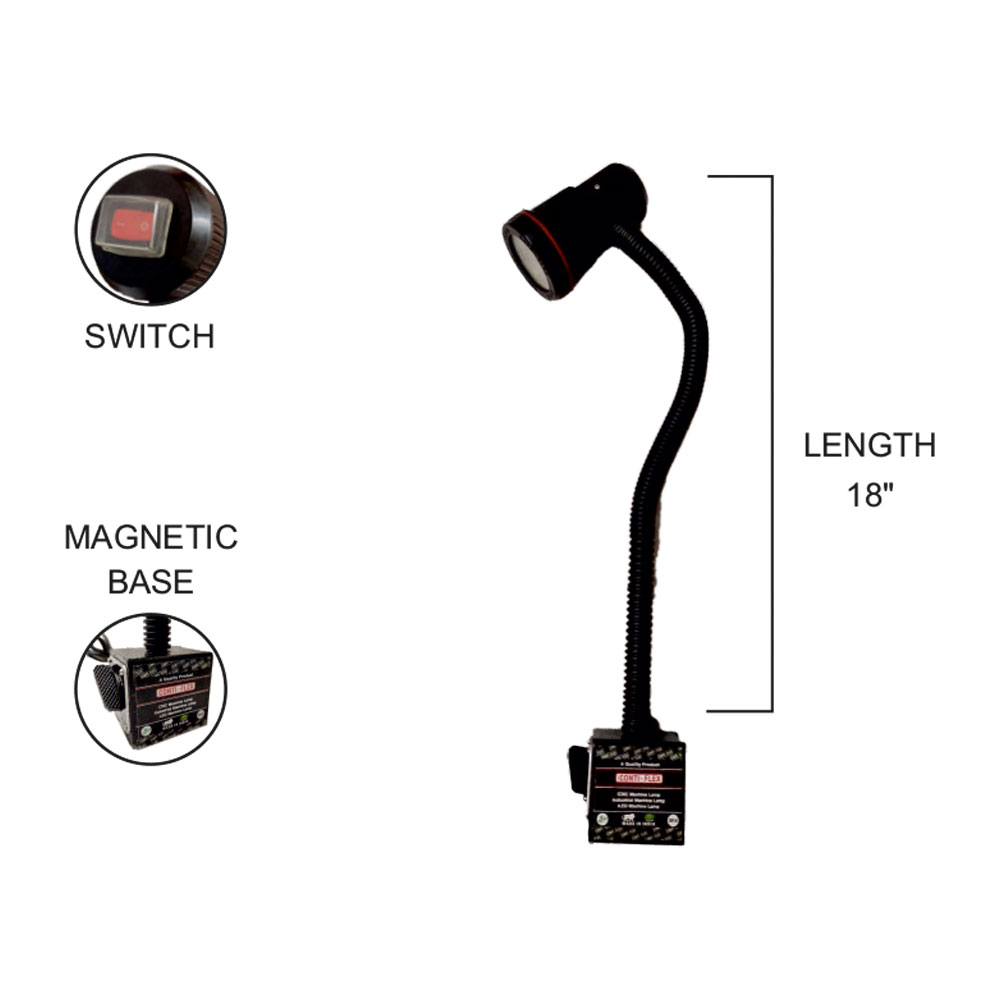

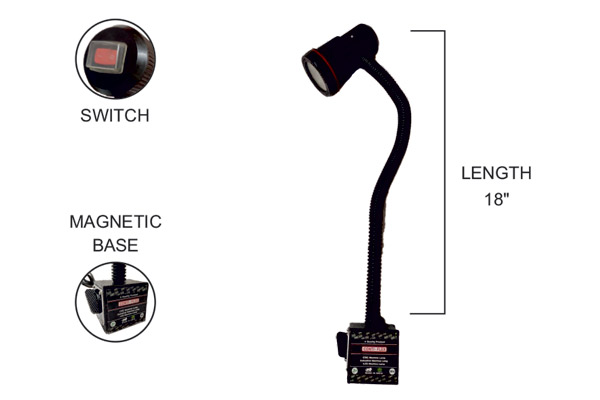

Machine Lamp Magnetic Base

Machine Lamp Magnetic Base

Machine Lamp Magnetic Base

Switch: Waterproof Switch, 50000 times ON /OFF test done
Head: Nylon Polymide Base: CRYSTAL Brand Heavy Duty Magnet
Wire: 3 Core x 2 Mtr Long Cable Voltage: 230V AC Supply
Luminiuos: 600 Lumen Power: 6.5W
Light Colour: White Holder: MR 16
LED Colour Temperature: 6500K Protection: Splash resistant 3mm Glass

Model No. M1823 M1824
Supply Voltage 230V AC 24V DC
Choke Internal External

CNC Machine Lamps

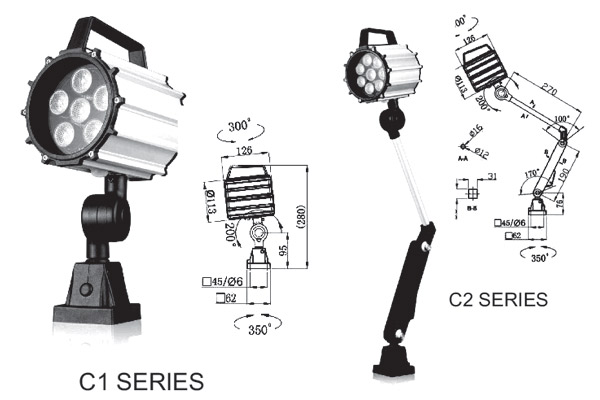

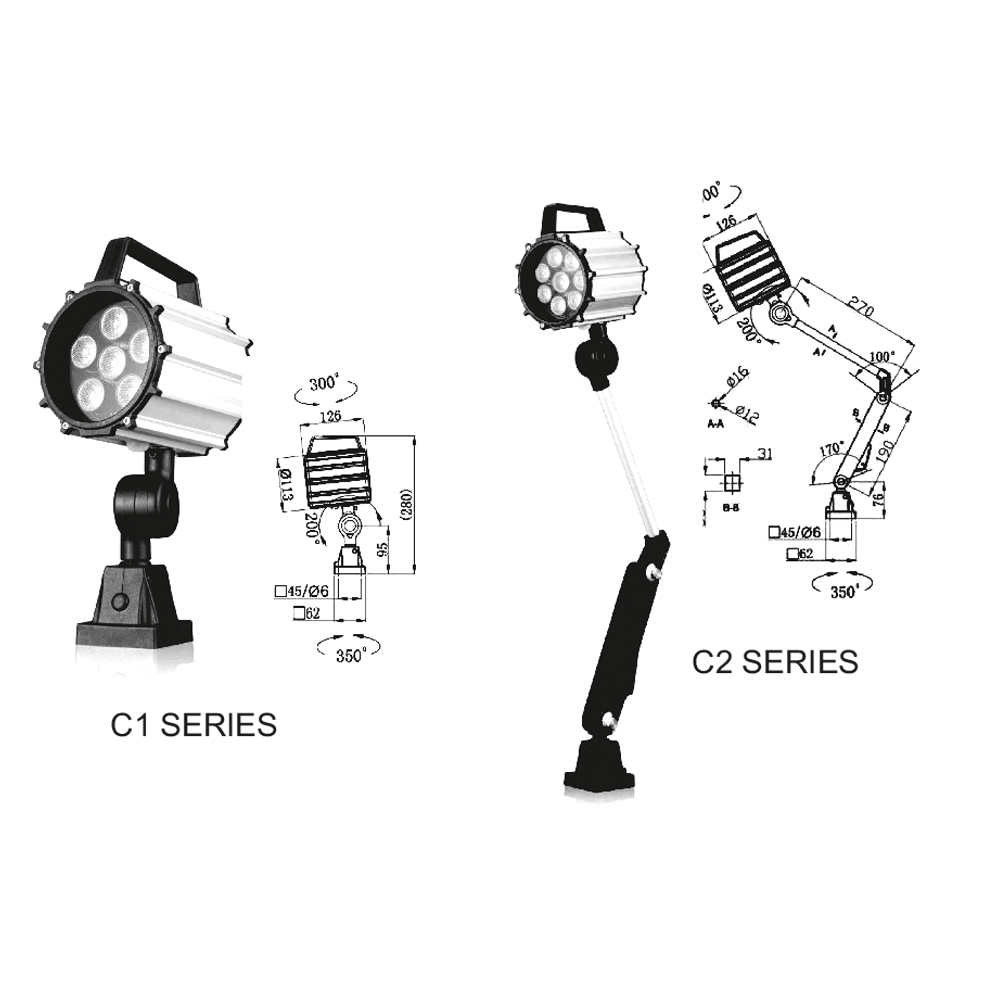

Machine Lamp Premium Series

Machine Lamp Premium Series

Machine Lamp Premium Seriess

Switch: 50000 times ON/OFF test done
Head: Aluminium Base: Nylon Polymide
Wire: 2 Core x 1 Mtr Long Cable Power: 9.5 W
Luminious: 1000 Lumen Bulb: LED
LED Colour Temperature: 4000-4500K Light Colour: Warm White

Model No. C1 - 230 C1 - 24 C2 - 230 C2 - 24
Supply Voltage 230V AC 24V DC/AC 230V AC 24V DC/AC
Arms Without Arms 2 Arms

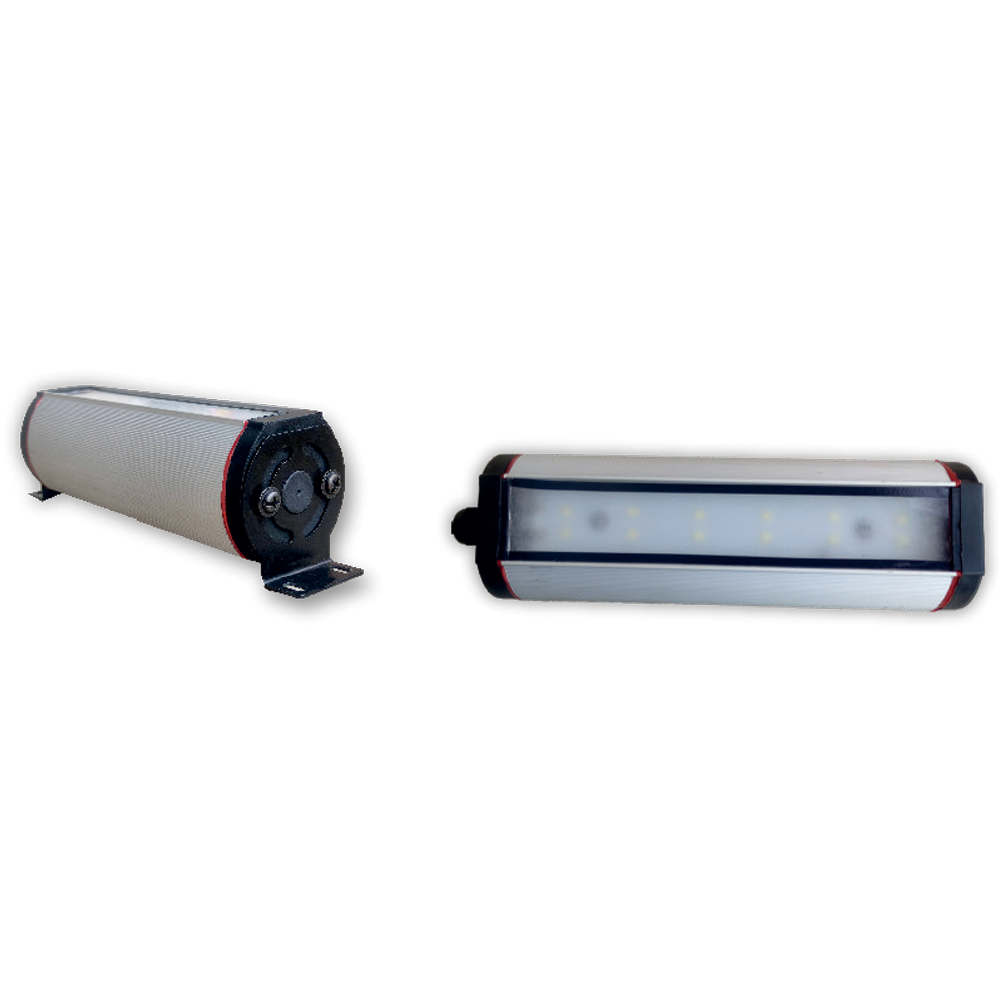

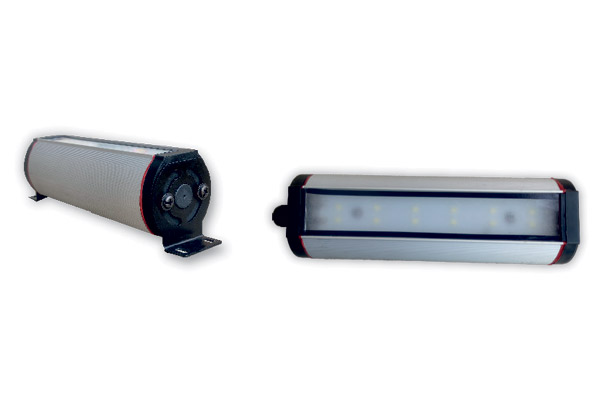

CNC Machine Lamp LED

CNC Machine Lamp LED

CNC Machine Lamp LED

Mounting: Mild steel material, side rotating Mounting bracket
Alloy & Temper: 6063 & T6 Body: Anodised Aluminium Housing - 60mm Dia
Voltage: 230V AC and 24V DC Protection: Water & Oil protection, IP 67
Installation: Fixed by Screw LED: Osram Led, 50000 hours working
Light Colour: White Wire: 2 Core x 2 Mtr Long cable
Housing Colour: Silver Efficiency: 110 Lm / Watt
Operating Temperature: -10O C to 70O C

Model No. CNC 623 CNC 624 CNC 923 CNC 924 CNC 1223 CNC 1224 CNC 1823 CNC 1824
Voltage 230V AC 24V DC 230V AC 24V DC 230V AC 24V DC 230V AC 24V DC
Length 220 mm 280 mm 375 mm 495 mm

Coolant Pipes

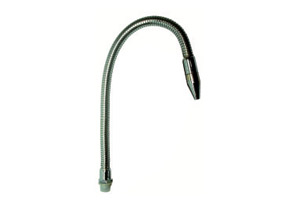

Metallic Coolant Pipe

Metallic Coolant Pipe

Metallic Coolant Pipe

Mild Steel, Chrome Plated, Round Nozzle
Length : 12’’,18’’,24’
Thread Fitting : 3/8 BSP Thread (Male) Standard Fitting
Outer Diameter : 15 mm

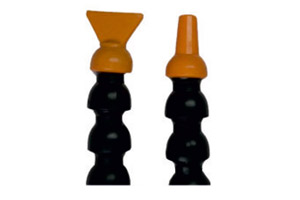

PVC Coolant Pipe

PVC Coolant Pipe

PVC Coolant Pipe

Specification : Deldrin material, round & flat Nozzle available.
Length : 6” upto 30” long
Thread Fitting : 1/4 BSP, 3/8 BSP, 1/2 BSP, and 3/4 BSP (Male) fitting.

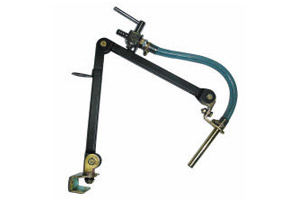

Spout Assembly

Spout Assembly

Spout Assembly

Spout Assembly can be moved in any plane.
PVC Pipe Collant flow of 10 Litres per minute allows the cooling of the Tools.
Provision of swiveling is also provided for convenience.

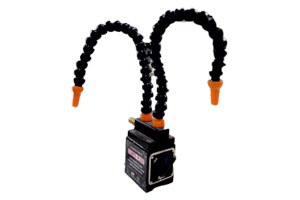

Coolant Pipe with Magnetic Base

Coolant Pipe with Magnetic Base

Coolant Pipe with Magnetic Base

Y Type Coolant Pipe
Pipe Output End fitting : 1/4 BSP
Pipe Input End Fitting: 1/4 BSP
Total Length : 18” Long
CRYSTAL Brand Magnetic Base
